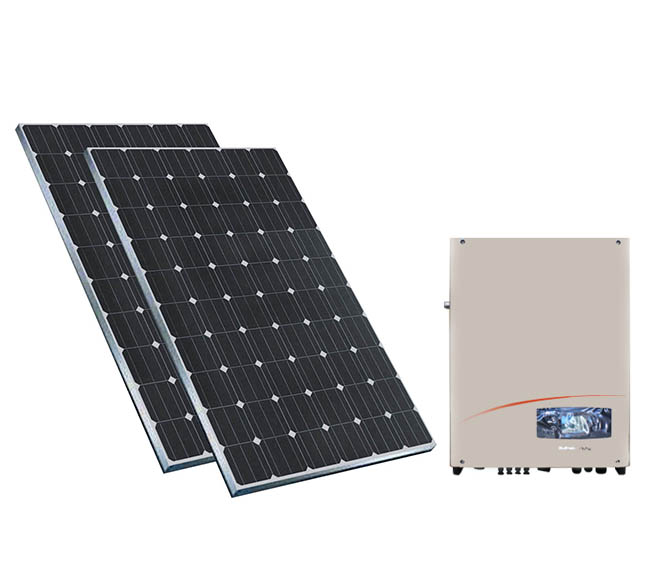

On-Grid Solar Home System 10KW
- On-Grid inverter 10Kw
- Solar Panel Polycrystalline 255WP/Monocrystalline 270WP 40 Unit
- Rangka solar panel
- DC Isolator
- Kabel DC dari solar panel ke inverter
- AC MCB
- Kabel AC dari inverter ke instalasi
Inverter Specification |
|||||||||
Input Side Data |
|||||||||
Max. PV input |
10550W |
||||||||
Max. PV voltage |
1000 V |
||||||||
Startup voltage |
250 V |
||||||||
Nominal input voltage |
610 V |
||||||||
MPP voltage Range |
200…900 V |
||||||||
MPP voltage range for nominal power |
320…800 V |
||||||||
No. of MPPTs |
2 |
||||||||
Max. number of PV strings per MPPT (DC1/DC2) |
3/1 |
||||||||
Max. PV Input current (DC1/DC2) |
33 A(22 A/11 A) |
||||||||
Max. current for input connector |
12 A |
||||||||
Short-circuit current of PV input (DC1/DC2) |
42A (28A/14A) |
||||||||
Output Side Data |
|||||||||
Nominal AC output power |
10000W |
||||||||
Max. AC output apparent power |
10526VA |
||||||||
Max. AC output current |
15.3A |
||||||||
Nominal AC voltage |
3/N/PE, 230/400 Vac |
||||||||
AC voltage range |
310…450 Vac |
||||||||
Nominal grid frequency |
50 Hz |
||||||||
Grid frequency range |
45…55 Hz |
||||||||
THD |
<3% (Nominal Power) |
||||||||
DC current injection |
<0.5% In |
||||||||
Power factor |
>0.99 @default value at nominal power |
||||||||
Protection |
|||||||||
Anti-islanding protection |
Yes |
||||||||
AC short circuit protection |
Yes |
||||||||
Leakage current |
Yes |
||||||||
DC switch |
Integrated |
||||||||
DC Fuse |
No |
||||||||
Overvoltage protection |
III |
||||||||
System |
|||||||||
Max. efficiency |
98.0% |
||||||||
Isolation method |
Transformerless |
||||||||
Ingress protection rating |
IP65 |
||||||||
Night power consuption |
|||||||||
Operating ambient temperature range |
-25°C…60°C (>45°C derating) |
||||||||
Allowable relative humidity range |
0…100 % |
||||||||
Cooling method |
Natural cooling |
||||||||
Noice |
≤ 29 dB |
||||||||
Max. operating altitude |
2000 m |
||||||||
Display |
Graphic LCD |
||||||||
Communication |
2xEthernet, 2xRS485(RJ45 connector), 4xDigital inputs, |
||||||||
2xDigital Outputs, Websever Integrated |
|||||||||
DC connection type |
MC4 |
||||||||
AC connection type |
Plug and play connector |
||||||||
Certification |
VDE0126- 1- 1, EN62109- 1, EN62109-2, |
||||||||
G83/1, VDE-AR-N-4105, CEI 0- 21 |
|||||||||
Mechanical Data |
|||||||||
Dimensions (W x H x D) |
535*710*220 mm |
||||||||
Mounting method |
Wall bracket |
||||||||
Weight |
36 kg |
